Technical specifications

Operating System:	4 - gondola reversible ropeway
Date of construction:	1955 -1957 (21.02.1957 opening)
Inclined lenght:	2021 m
Max line speed.:	New since Nov 2012: 6 m/s/td>
Auxillary drive:	0,7 m/s
Main drive capacity:	98 kW, Thyristor- controlled direct current moto
Auxillary drive capacity:	30 kW, polyphase motor
Central control:	Siemens S5 /S7 - SPS
Transport capacity:	130 Pers/h each direction
Track rope:	25.5 mm, completly encased, renewed in 2002
Calculated breaking strengtht:	80.2 t ; actually broke at 87,7t in simulation
Haul rope:	19 mm, Seale - Type, installed 1967
Calculated breaking strength:	24,45 t

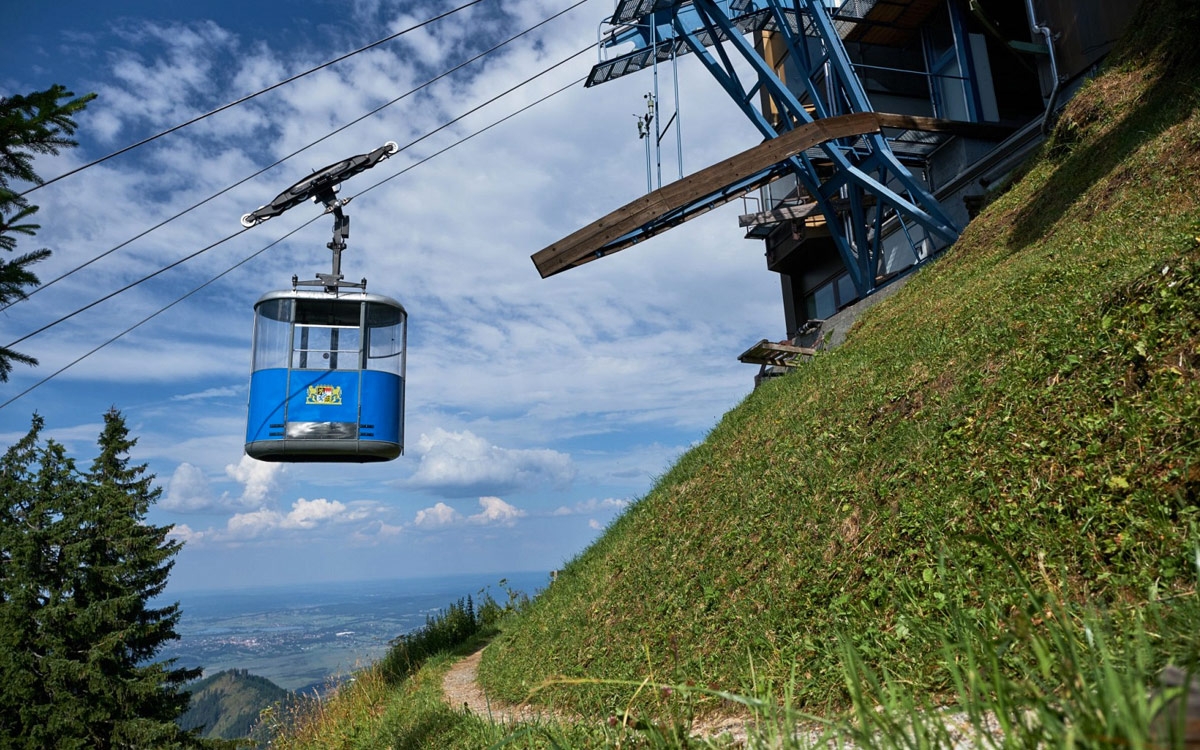

The Laber Cable Car is the last oparating 4 - gondola reversible ropeway worldwide.

Office of supervision
Regierung von Oberbayern
Sachgebiet 31.2
Ingenieurbau, Schienen- und Seilbahnen
Maximilianstr 39
D-80538 München

Cable car hours of operation:

Berghütte open daily:
Warm kitchen until 1,5 hours before closing time cable car.

Adults:

Children:

Roundtrip	12,00 €
One way up	7,00 €
